K Span No Girder Roll Forming Equipment With Panasoinc PLC 303mm Effective Width

Name: K Span No Girder Roll Forming Equipment With Panasoinc PLC 303mm Effective Width
Brand: Shenghong
Price: 1 USD

Wholesale K Span No Girder Roll Forming Equipment With Panasoinc PLC 303mm Effective Width from china suppliers

Brand Name : Shenghong

Model Number : SWL151225-187

Certification : CE ISO

Place of Origin : Jiangsu, China

MOQ : 1 sets

Price : Negotiation

Payment Terms : T/T

Supply Ability : 25 SETS/ MONTH

Delivery Time : 40 days after payment

Packaging Details : 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.

feed device : auto-feed device

Max span : 40m

Material of cutting blade : Cr12

machine type : span making machine

Material of shaft : 45# steel, adjusted

Material of rollers : 45# steel, quenched

Contact Now

K Span No Girder Roll Forming Equipment With Panasoinc PLC 303mm Effective Width

Technical parameters:

1 original width: 618mm, effective width: 303mm
2 Thickness: 0.8-1.1mm
3 Forming number: 14
4 Working speed: 10-15m/min
5 Host Power: 5.5KW
6 power play Bender: 4KW
7 Hydraulic station power: 2.2KW
8 Control system: PLC, Panasonic

Photo of the bending machine:

K Span No Girder Roll Forming Equipment With Panasoinc PLC 303mm Effective Width

Photo of the seaming machine:

K Span No Girder Roll Forming Equipment With Panasoinc PLC 303mm Effective Width

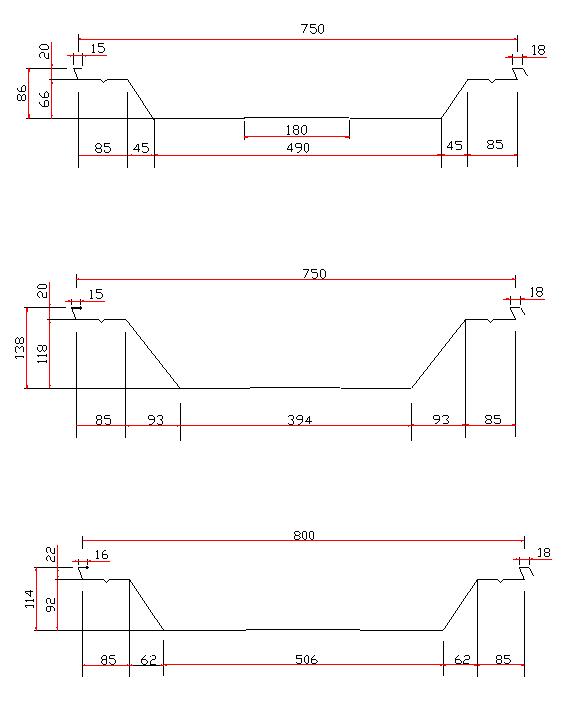

Profile drawings
K Span No Girder Roll Forming Equipment With Panasoinc PLC 303mm Effective Width

K Span No Girder Roll Forming Equipment With Panasoinc PLC 303mm Effective Width

II Features

1 Rollers are made of good steel, coated with rigid chrone.

2 There is an auto-feed device which can feed 0.5-1.5mm color steel sheets. During production, there is no need to adjust the gaps between rollers.

3 Light and convenient hoist, only 2kg (those from USA is 30kg). And thus makes quick and convenient installation.

4 Large span, high corrugation, high tension strength, nutless, etc.

5 Profile:depends on drawings and on request

IV Buildup and spares

1. Decoiler for coils

2. Straight panel forming unit

3. Curving panel forming unit

4. Electric control system

5. Electric mould cutter

6. Two manual clamps (for clamping the beginning seam lock between two curved panels)

7. Small C chanel bending machine

8. Lifting clamps, 8 sets

9. Lifting steeve, two pieces

10. Lock seaming machine

11. Run-out racks for straight panel and curving panel: each 8 pcs enough for 36m span

12. Bearings for roller stands of straight panel forming mschine: two pieces

13. Driving chains: two pieces

14. Hand scissors: one piece (for cutting beginning terminal of color coils)

15. Hand clamps (for clamping curved panels to let seamer seam two panels together): 4 pieces

16. Wrench: one piece

17. Operation manual and CD

Machinery Photos

K Span No Girder Roll Forming Equipment With Panasoinc PLC 303mm Effective Width

Workshop Show

K Span No Girder Roll Forming Equipment With Panasoinc PLC 303mm Effective Width
